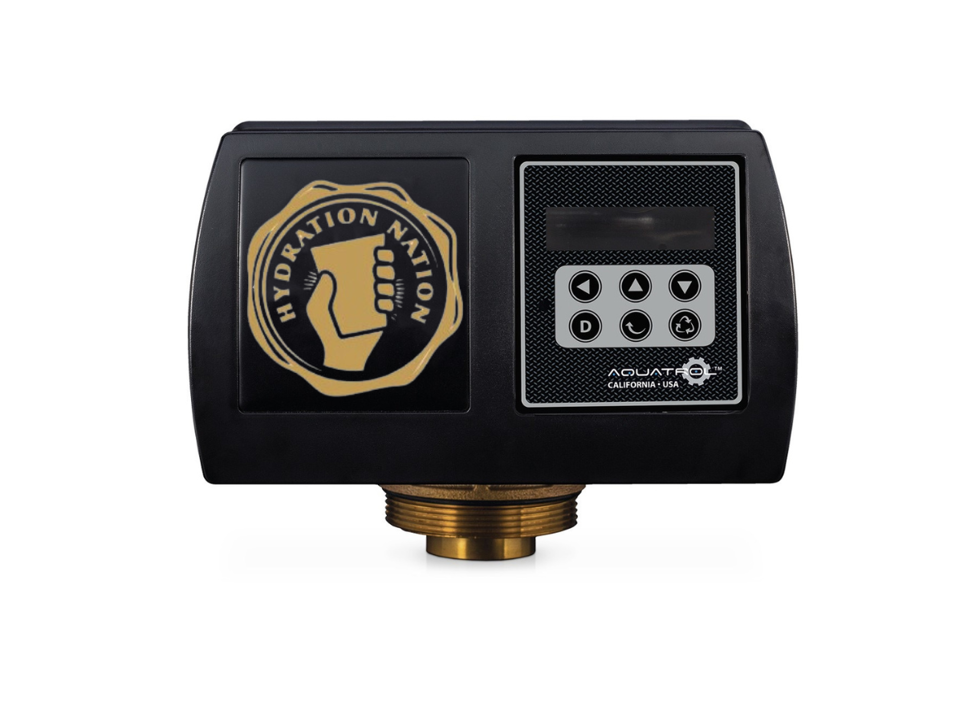

Aquatrol 285 Filter NX Valve, 24V/60HZ

Aquatrol 285 Control Valves offer a flanged body design for convenient maintenance and are made of solid lead-free brass for superior strength and durability. The AQT-285 also offers a NG piston option and has a time-tested piston, seal and spacer design. FEATURES • 1.5” Control valve • Lead free brass body • Adjustable 5 cycle control (Mech. & Digital NX) • Backwash capacity for tanks up to 30” (filters) and 36” (Softeners) diameter • Continuous flow rate of 51 gpm with backwash of 49 gpm • NH option available • Time clock: 12 days • Meter NX: immediate/ delayed regeneration • Digital NX Controller o Remote Signal o Aux. Relay o Chemical Pump Option o English/ Spanish Language REGENERATION Electrical Rating: 24V- 50Hz, 60Hz Max. VA: 74 VA Water Pressure: Hydrostatic:300 psi (20 bar) Working: 20-125 psi (1.4-8.6 bar) Temperature: 34-110 °F (1-43 °C) VALVE SPECIFICATION Inlet/Outlet: 1- ½ ” NPT Mounting Base: 4”-8” UN Distributor Pilot: 1.96” OD (1.5” SCH 40) Drain Line: 1” Brine Line: ½” Height: 7- ½” (190 mm) Weight (Valve Gross): Timer 22 lb (10 kg) Meter 27.6 lb (12.5 kg) Meter NX Accuracy: 1.5-7.5 gpm (5.7-284 lpm) +/- 5% Capacity Range: 0-999,999,999 gal REGENERATION/ BACKWASH Downflow/ Upflow: Downflow Cycles: 5 Adjustable Cycles: All Time Available: Mechanical 164 Min/ Digital NX 0-4 Hours Each Cycle FLOW RATE 50 psi (3.5 bar) Valve Alone Continuous 15 psi (1 bar) Drop: 51 gpm (193 lpm) Peak 25 psi (1.7 bar) Drop: 66 gpm (250 lpm) Max Backwash 25 psi (1.7 bar) Drop: 49 gpm (185 lpm) CV 1psi (0.07 bar) Drop: 13.2
